HT-04D Thermal Imaging Camera with 2.8 Inch Plastic Screen and 160x120 Thermal Resolution
HT-04D Handheld Infrared Thermal Imager
HT-04D Handheld Infrared Thermal Imager
In today’s fast-paced industrial, electrical, automotive, and building-maintenance environments, finding abnormal heat quickly can prevent equipment failure, reduce downtime, and improve safety.
The HT-04D Handheld Infrared Thermal Imager is a compact, portable thermal inspection camera designed to visualize temperature differences that may not be visible to the naked eye. With 160 × 120 infrared resolution, a wide temperature measurement range, real-time thermal imaging, built-in image storage, Wi-Fi capability, and IP54 protection, the HT-04D is built for practical field inspections.
Whether you are troubleshooting an electrical panel, checking an HVAC system, inspecting machinery, diagnosing automotive components, or looking for heat loss in a building, the HTI HT-04D provides a fast way to locate potential thermal problems.
The HTI HT-04D is a portable, fixed-focus infrared camera for non-contact temperature measurement and thermal inspection.

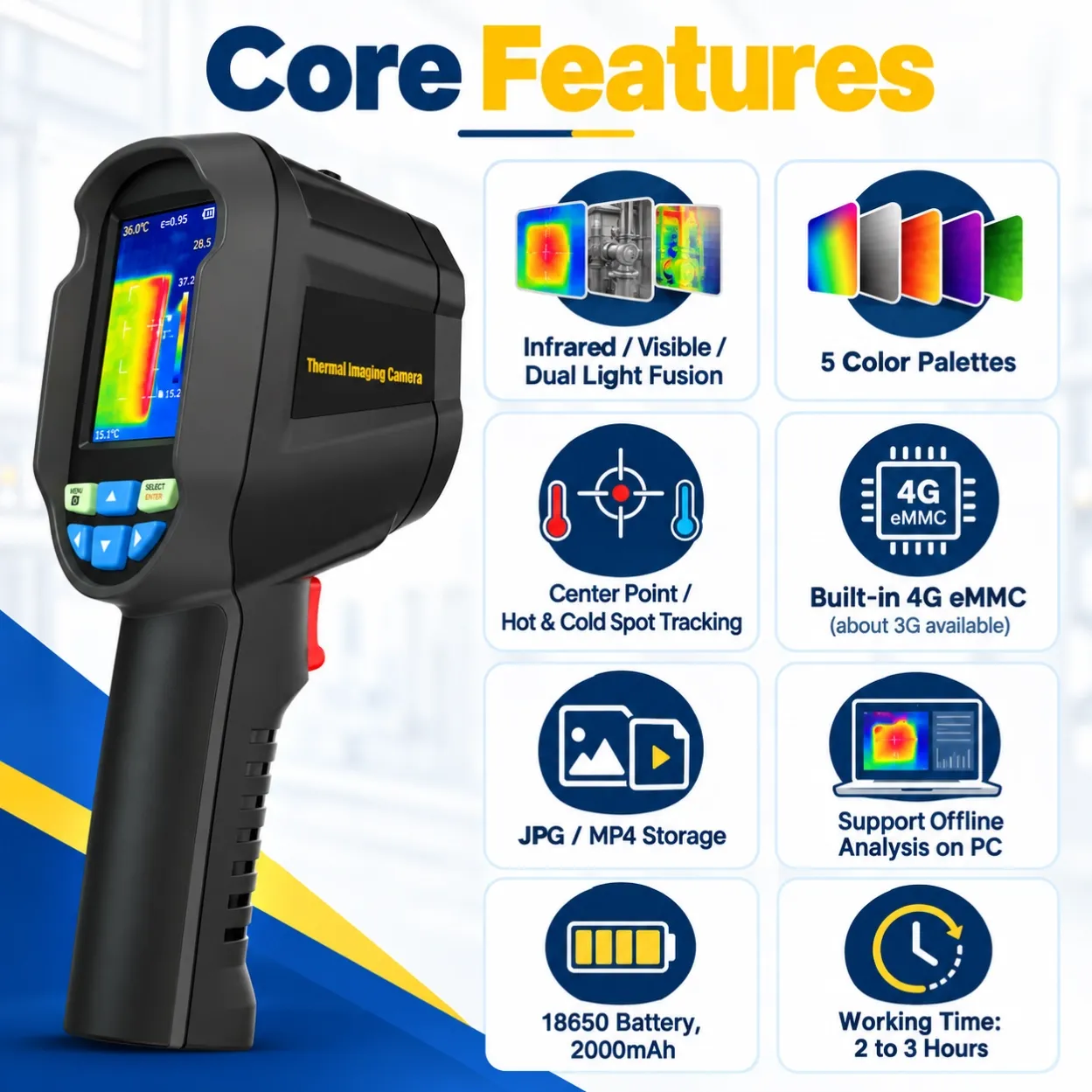

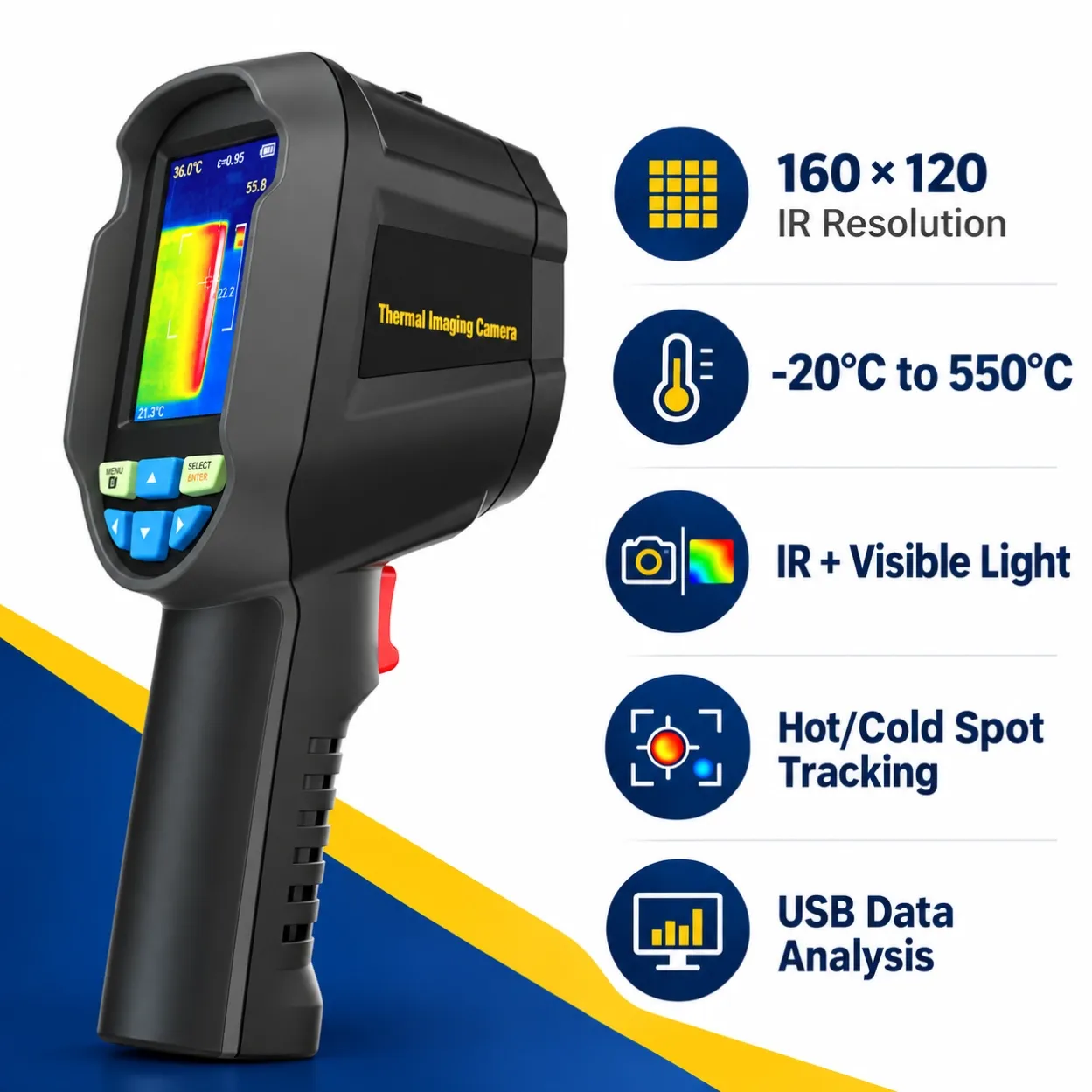

FEATURES
* 160 × 120 infrared resolution for detailed thermal imaging
* 2.8-inch TFT display for clear viewing during inspections
* Wide temperature measurement range from -15°C to 550°C
* High thermal sensitivity of 0.07°C for detecting small temperature differences
* Multiple color palette modes for easier identification of hot and cold areas
* Real-time temperature analysis for immediate thermal assessment
* Built-in 3G memory for storing inspection images
* JPG image format for convenient image management and sharing
* Micro USB 2.0 interface for data transfer
* Rechargeable 18650 battery for convenient field operation
* IP54 protection against dust and water splashes
* Fixed-focus design for simple point-and-inspect operation
* Compact and lightweight construction at approximately 389 g
* Portable wrist-strap design for convenient field use
* Wi-Fi capability for convenient wireless connectivity where supported

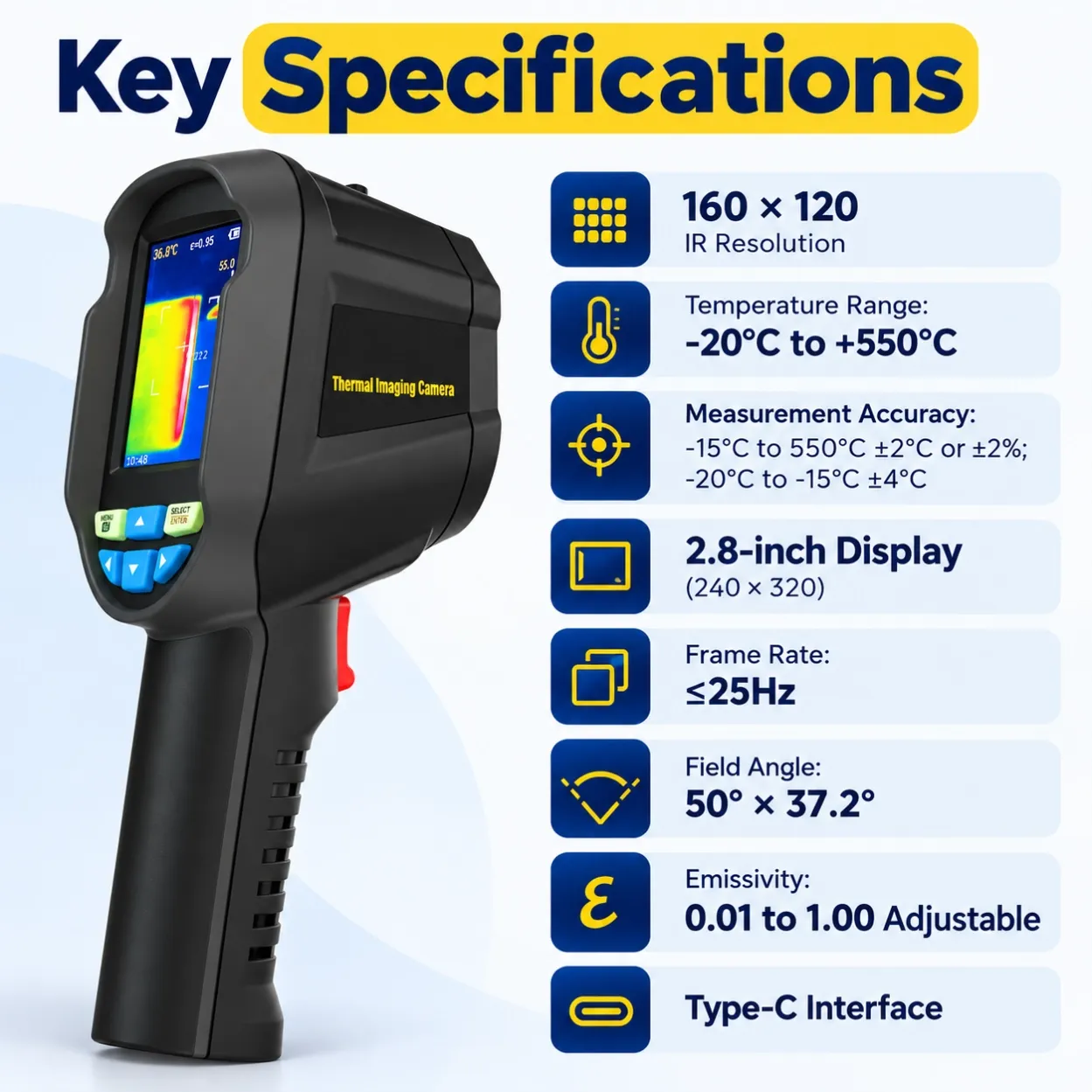

SPECIFICATIONS
* Product: HTI HT-04D Handheld Infrared Thermal Imager
* Display: 2.8-inch TFT screen
* Infrared Resolution: 160 × 120 pixels
* Field of View: 35° × 26°
* Thermal Sensitivity: 0.07°C
* Temperature Measurement Range: -15°C to 550°C
* Accuracy: ±2% or ±2°C
* Emissivity: 0.1–0.99 adjustable
* Frame Rate: 9 Hz
* Spectral/Wavelength Range: 8–14 μm
* Focus: Fixed focus
* Image Storage: Built-in 3G memory
* Image Format: JPG
* USB Interface: Micro USB 2.0
* Battery: Rechargeable 18650 battery
* Product Dimensions: 96 × 72 × 226 mm
* Weight: Approximately 389 g
* Operating Temperature: 0°C to 45°C
* Operating Humidity: Less than 85% RH
* Connectivity: Wi-Fi capability
APPLICATIONS
Electrical Inspection
Use the HT-04D to scan electrical panels, breakers, terminals, cables, connectors, and other components for abnormal
temperature patterns. Hotspots can indicate loose connections, excessive electrical loads, poor contacts, or developing faults.
HVAC & Floor Heating
Thermal imaging can help identify uneven heating, blocked areas, insulation problems, and temperature differences in HVAC equipment and floor-heating systems.
Automotive Repair
Inspect engines, batteries, electrical components, bearings, cooling systems, and other vehicle components for abnormal heat that may indicate a developing problem.
Building Inspection
The HT-04D can help locate temperature differences associated with insulation gaps, moisture-related problems, heat loss, and potential areas requiring further investigation.
Industrial Equipment Monitoring
Regular thermal inspections of motors,
pumps, bearings, machinery, electrical cabinets, and production equipment can help identify abnormal heat before it develops into an expensive failure.
Fire & Hotspot Detection
Thermal imaging can assist in locating abnormal heat and hotspots during safety inspections and certain firefighting-related applications. It should be used as an inspection aid and not as a replacement for appropriate fire-safety equipment and procedures.
