S600A Smart Graphical Recording Multimeter 60 000-count High-Precision Touchscreen
BSIDE 60000 Counts PV Multimeter, Power Measurement with 10000A Flexible AC Clamp Wire, Date Recorder with 3.98" Touch LCD, 1500VDC/1000VAC, Cap Diode Temp Amp Peak Teser for Photovoltaic Solar Panel

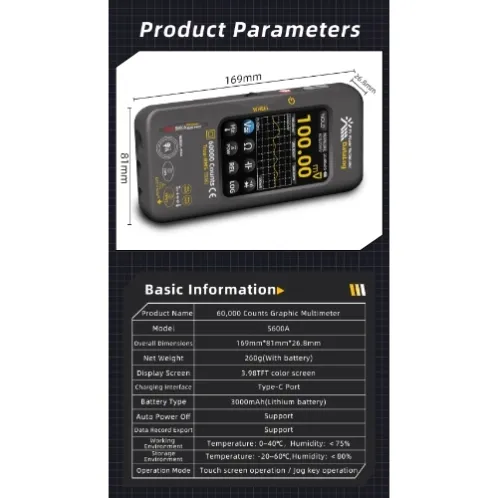

Specifications
- Size
- 169*81*26.8mm
BSIDE 60000 Counts PV Multimeter, Power Measurement with 10000A Flexible AC Clamp Wire, Date Recorder with 3.98" Touch LCD, 1500VDC/1000VAC, Cap Diode Temp Amp Peak Teser for Photovoltaic Solar Panel
Features:

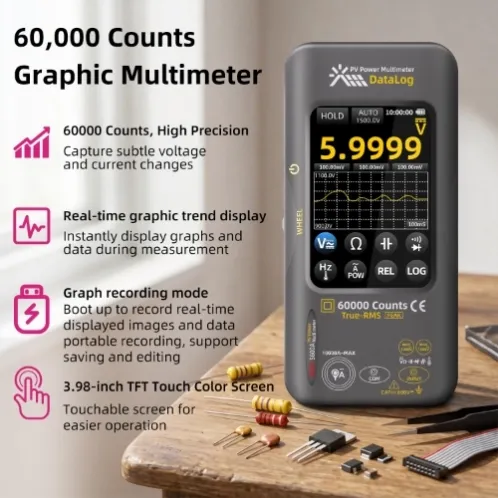

60000 counts multimeter

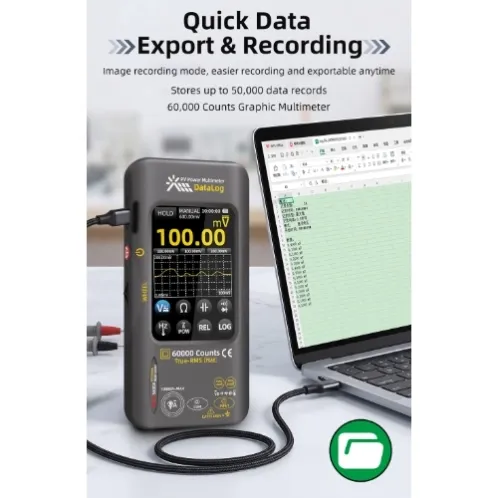

Multimeter with date recording mode

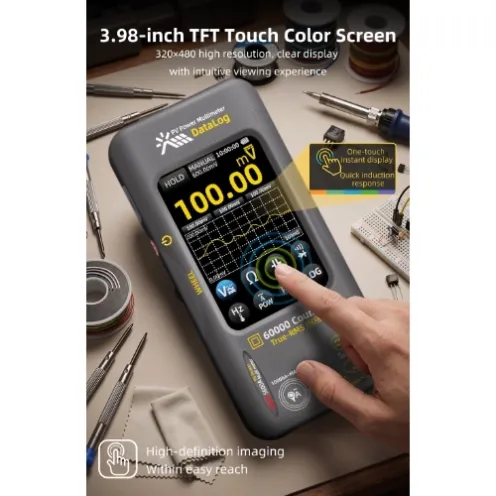

Multimeter with 3.98” touch screen
1500VDC / 1000VAC voltage measurement
Measures 10000A ac current with flexible clamp
Measures voltage, resistance and continuity
Measures capacitance, diode and frequency
Measures temperature, REL, PEAK
Auto range, auto power off, low battery indication

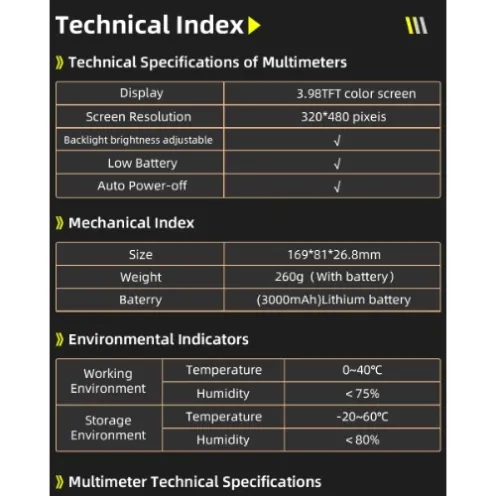

Specifications:
MAX Display: 60000 counts
DC Voltage:
600mV/6V/60V/600V/1500V 0.01mV/0.0001V/0.001V/0.01V/0.1V ±(0.03%+5)
AC Voltage (Frequency:40Hz-1000Hz):
600mV/6V/60V/600V/1000V 0.01mV/0.0001V/0.001V/0.01V/0.1V ±(0.03%+15)
AC Current (Frequency:40Hz-1000Hz):
10A/100A 0.01A/0.1A ±(2%+6); 1000A/10000A 0.01A/0.1A ±(3%+10)
Resistance:
600Ω/6KΩ/60KΩ/600KΩ/6MΩ 0.01Ω/0.0001KΩ/0.001KΩ/0.01KΩ/0.0001MΩ ±(0.1%+5);
60MΩ 0.001MΩ ±(3%+10)
Capacitance:
999.99nF/9.999μF 0.01nF/0.001μF ±(3%+30); 999.99μF/59.999mFμF 0.01μF/0.001mF ±(4%+30)
Temperature: -200℃~1300℃/-328℉~2372℉/73.1K~1573.1K 1℃/1℉/0.1K ±(2.0%+5)
Frequency:
99.999Hz/999.99Hz/99.999KHz/999.99KHz/99.999MHz 0.001Hz/0.01Hz/0.001KHz/0.01KHz/0.001MHz ±(0.01%+5)
Continuity: 0Ω~200Ω 0.01Ω ±(1%+5)
Diode: 0V~3V 0.0001V ±(2%+60), 0Ω~1KΩ 0.1Ω ±(2%+60)
Power: 3000mAh (built-in, rechargeable)
Size: 169*81*26.8mm
Weight: 259g
Package Includes:
1 x Digital Multimeter
1 x Flexible Clamp Wire
1 x Test Leads
1 x Charging Cable
1 x Carrying Case
1 x Thermocouple
1 x User Manual
