Digital Multimeters
SH9 320x428 Thermal Imager Camera Digital Multimeter
Industrial-grade Thermal Camera 25Hz thermal imaging sensor - 2-In-1 Thermal imaging&Multimeter. - suitable for: underfloor heating leaks, HVAC maintenance, power system inspections, electronic repairs, and industrial inspect. High-Precision Multimeter with 20000counts - manual and automatic range options - Maximum input DC voltage up to 1000V DC/AC voltage, current, resistance, capacitance, diode, frequency, NCV temperature measurements.
Specifications
- Thermal Sensitivity
- ＜60 mk
- Field of View
- 55° x 3°
- Image Frequency
- Frequency 50 Hz
- SH9 Field of View (FOV)
- 50.0°(H) * 37.2°(V)/63.6°(D)
- SH9 lens focal length
- 3.5mm
- Emissivity
- 0.1 to 0.99 adjustable,(0.95 by default)
- Power supply
- 2500mAh lithium battery
- DC voltage
- 1000V
- Resistance
- 200MΩ
- Capacitance
- 99.999mF
SH9 2-in-1 15 Color Palette Modes Visual IR Thermometer Graph Multimeter with Type-C Interface
⚫Screen size resolution :320*480px The display resolution of the thermal imaging screen is 320*428pX Sensor resolution: It is 256*192px This can display 320*428px because of super-resolution. With dual-light fusionVisible light
⚫Industrial-grade Thermal Camera 25Hz thermal imaging sensor - 2-In-1 Thermal imaging&Multimeter.
⚫suitable for: underfloor heating leaks, HVAC maintenance, power system inspections, electronic repairs, and industrial inspect.

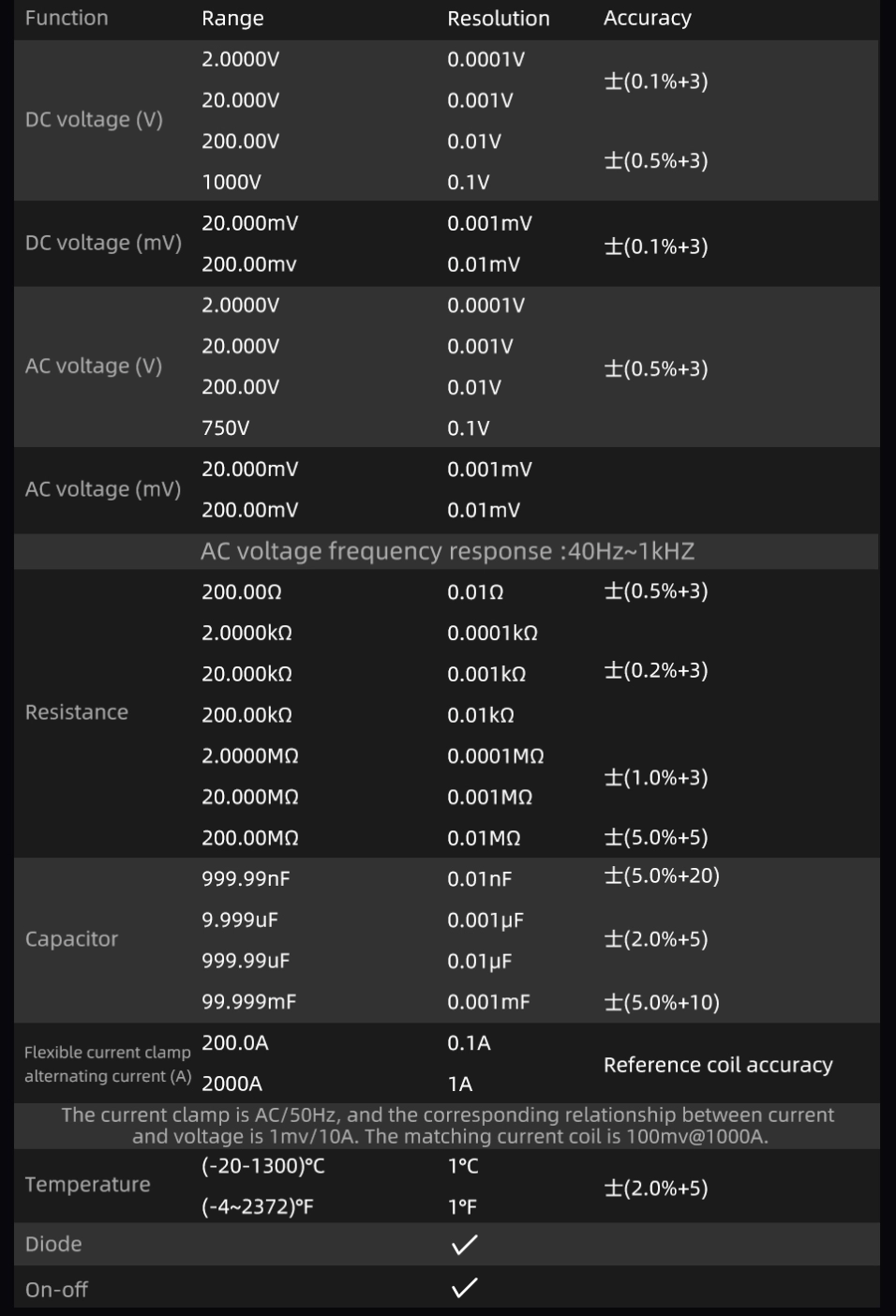

⚫High-Precision Multimeter with 20000counts - manual and automatic range options - Maximum input DC voltage up to 1000V DC/AC voltage, current, resistance, capacitance, diode, frequency, NCV temperature measurements.
⚫Clear Display with Rich Color Options - 3.98 inches TFT Capacitive touch screen with a resolution of 320x480 - 15 selectable color palettes, easily switching by long pressing the side button
⚫Available in 7 languages Including English, German, French, Spanish, Portuguese,Japanese, Italian, and Chinese, catering to global users.
⚫Strong Battery Life and Convenient Charging Powered by lithium battery with a runtime of up to 8 hours, reliable USB charging.PC Software Support Can transfer and analysis the multimeter data chart and thermal image

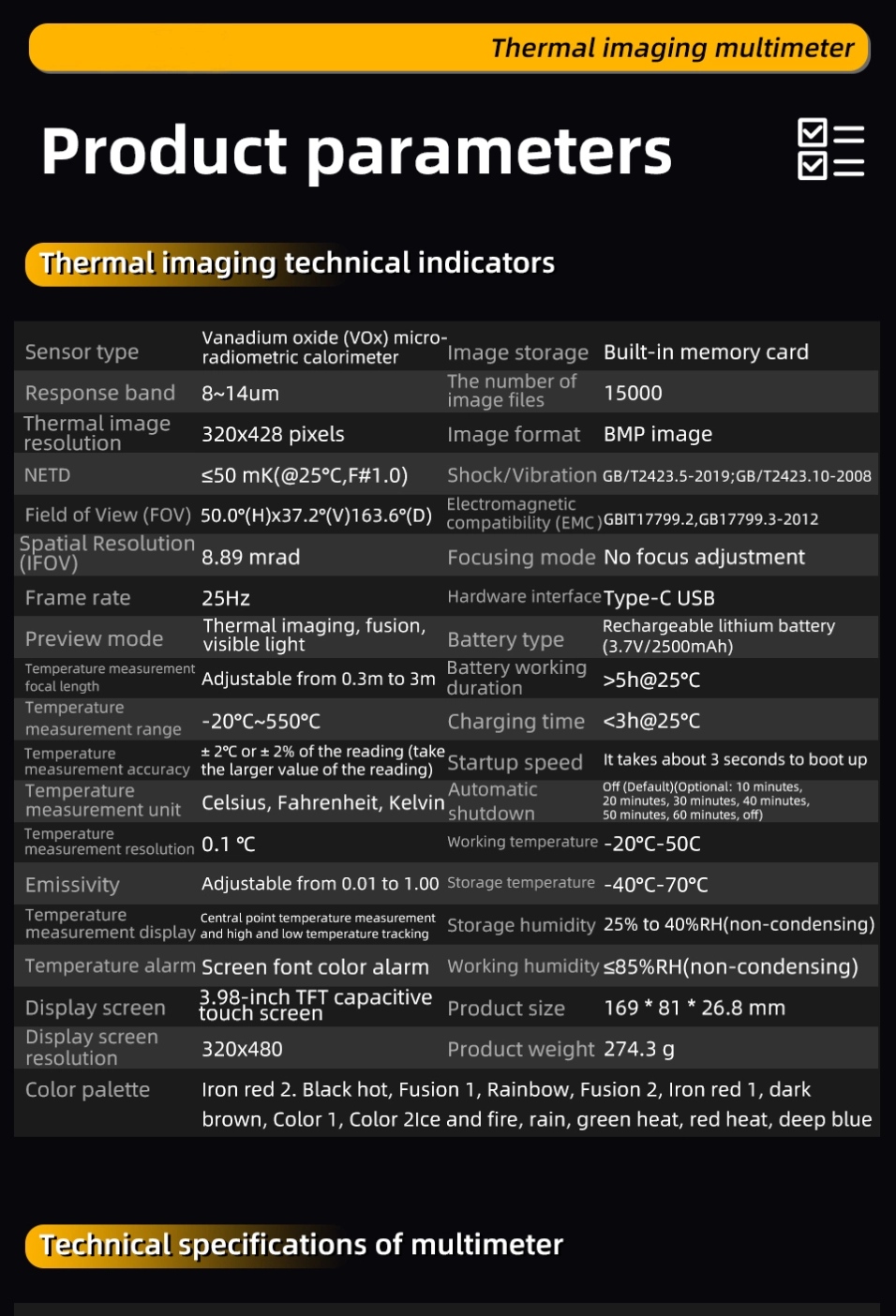

⚫Specifications: Thermal imaging parameters Sensor: Vanadium oxide (VOx) Image capture frequency:25HzSH9
⚫Display image resolution:320 x 428
⚫Macro Lens: Optional, no need to install, move the macro lens left and right during use.
⚫Macro lens working distance: about 3~5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)
