Sensor Type: Vanadium oxide (VOx) microcalorimeter
Response Band: 8–14 µm
Thermal Image Resolution: 320 × 428 Pixels
Noise Equivalent Temperature Difference (NETD): ≤50 mK (@25°C, F#1.0)
Field of View (FOV): 50.0° (H) × 37.2° (V) / 63.6° (D)
Spatial Resolution (IFOV): 8.89 mrad
Lens Focal Length: 3.5 mm
Temperature Measuring Focal Length: 0.3m–3m Adjustable
Temperature Range: -20°C–550°C
Temperature Measurement Accuracy: ±2°C or ±2% of the reading
Temperature Units: Celsius, Fahrenheit, Kelvin
Temperature Resolution: 0.1°C
Emissivity: 0.01–1.00 Adjustable
Display: 3.98-inch TFT Capacitive Touchscreen
Display Resolution: 320 × 480
Temperature Alarm: Screen font color alarm
Image Storage: Built-in memory card
Image File Capacity: 15,000 files
Image Format: BMP
Focus Mode: Autofocus
Battery Type: Rechargeable lithium battery (3.7V / 2500mAh)
Operating Hours: Over 5 hours (@25°C)
Charging Time: Less than 3 hours (@25°C)
Charging Voltage/Current: 5V / 2A
Boot Speed: Approximately 3 seconds
Automatic Shutdown: Customizable (default disabled or between 10–60 minutes)
Operating Temperature: -20°C–50°C
Storage Temperature: -40°C–70°C
Storage Humidity: 25–40%RH (Non-condensing)
Working Humidity: ≤85%RH (Non-condensing)
Product Weight: 274.3g
Package Weight: 495g
Product Size(L x W x H): 169*81*26.8mm
Package Size(L x W x H): 220*126*48mm

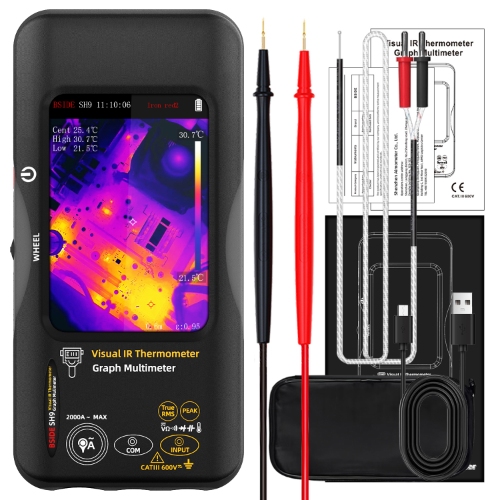

Package Contents:

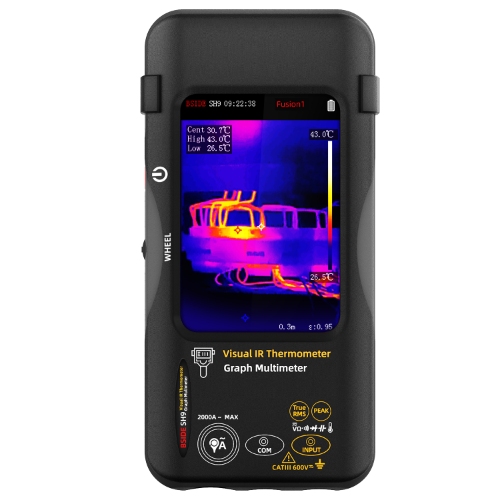

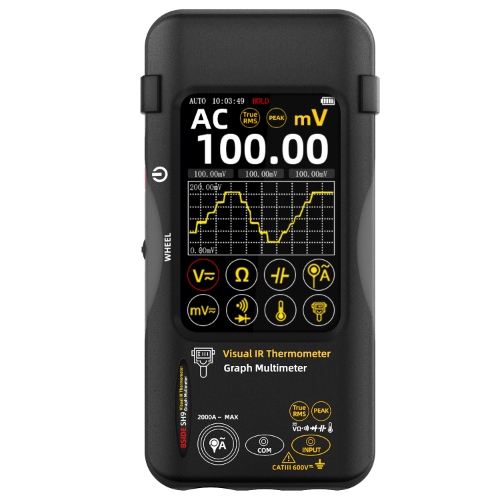

1 x Visual IR Thermometer Graph Multimeter
1 x USB Data Cable
1 x User Manual
1 x Temperature Probe
1 x Storage Bag
1 x Test Pen
1 x Rogowski Coil
