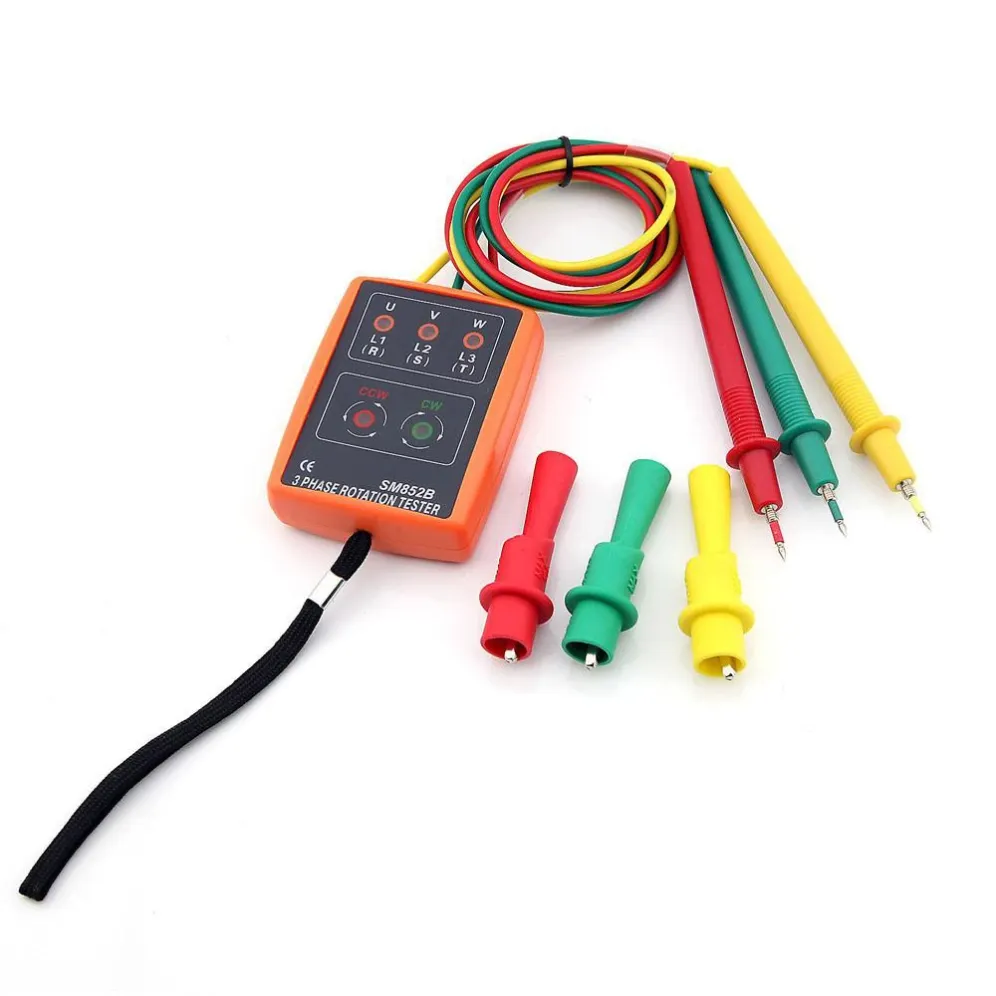

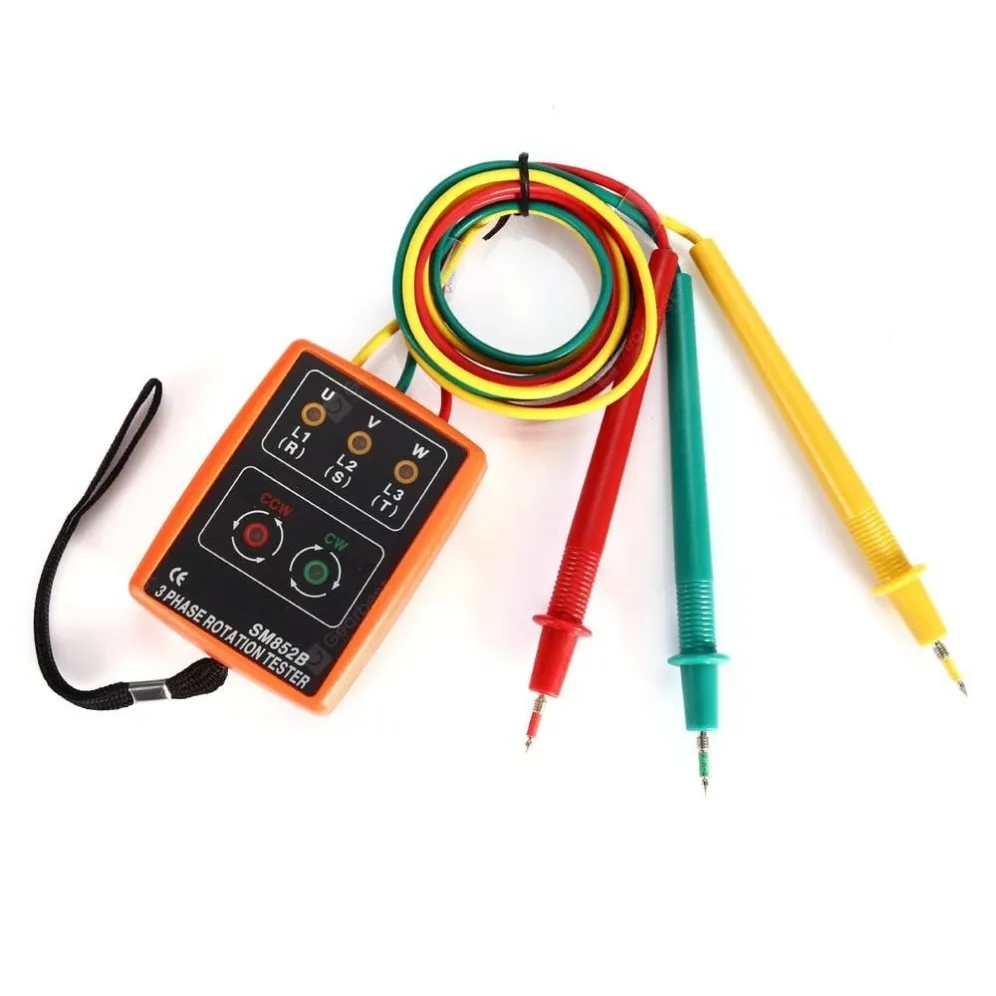

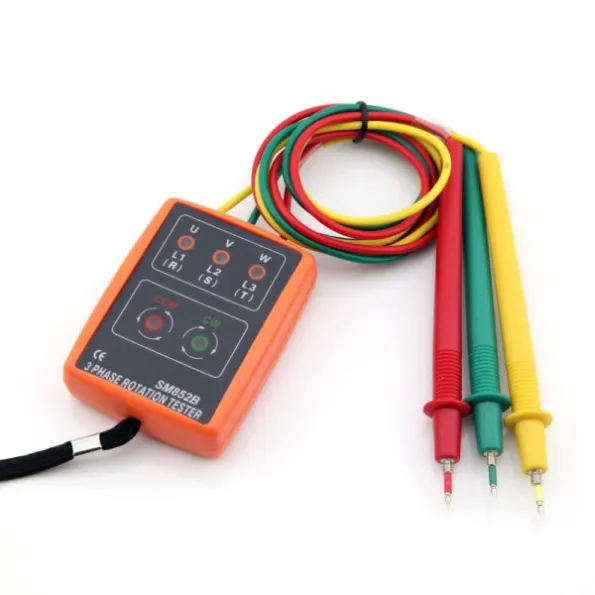

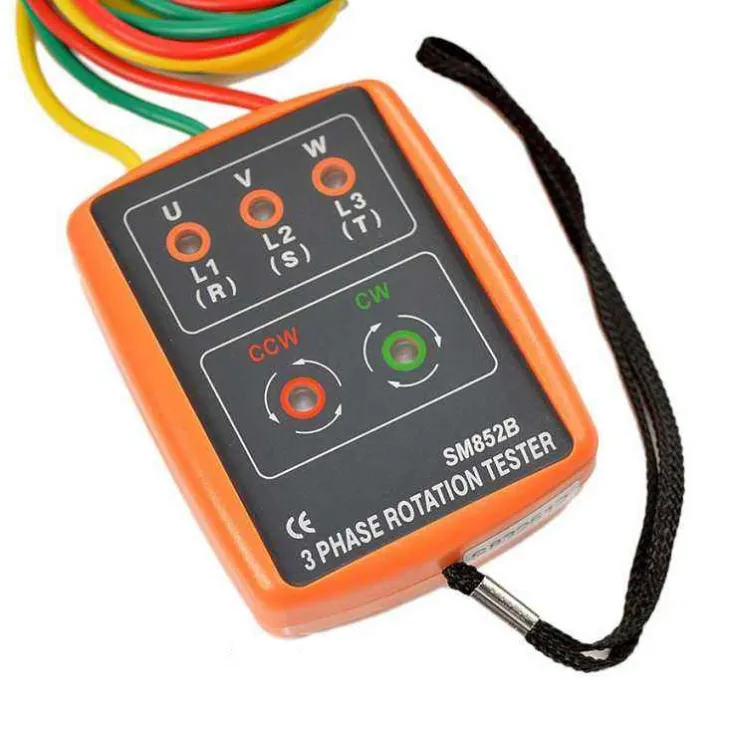

SM852B 3 Phase Rotation Tester Digital Indicator Detector LED Buzzer Sequence Meter Voltage Tools

SM852B AC 60V~600V 20Hz-400Hz Phase Sequence Order Rotation Indicator Tester with Simultaneous Indications Via LEDs and Audible Buzzer

SW852B Phase Sequence Tester

SM852B 3 Phase Sequence Presence Rotation Tester

Used to measure the opening phase condition and sequence through LED and Buzzer.

Used to check if current sequence on the 3 phase circuit is correct through Buzzer and LED.

One Unit with 2 Functions: Open phase indication and phase rotation indication.

Frequency range : 20Hz to 400Hz, red, green, yellow light indicates the buzzer.

Measuring frequency range: 20Hz to 400Hz;

here might be little color difference between object and picuture. Main Features: Used to measure the opening phase condition and sequence through LED and Buzzer. Used to check if current sequence on the 3 phase circuit is correct through Buzzer and LED. One Unit with 2 Functions: Open phase indication and phase rotation indication. Accurate measurement device for more effective usage, easy to use! Frequency range : 20Hz to 400Hz, red, green, yellow light indicates the buzzer. Measuring frequency range: 20Hz to 400Hz;continuously usage time: 200V ACV£¨in 60mins£©,600V ACV£¨in 4mins£© Working Voltage: 60V to 600V (3 Phase AC); Highest Voltage Resistance: 2000V/min (Pulse Voltage: 4000V£©

Specifications: Weight: 246g

Package include: 1 * SM852B 3 Phase Indicator 1 * User Manual

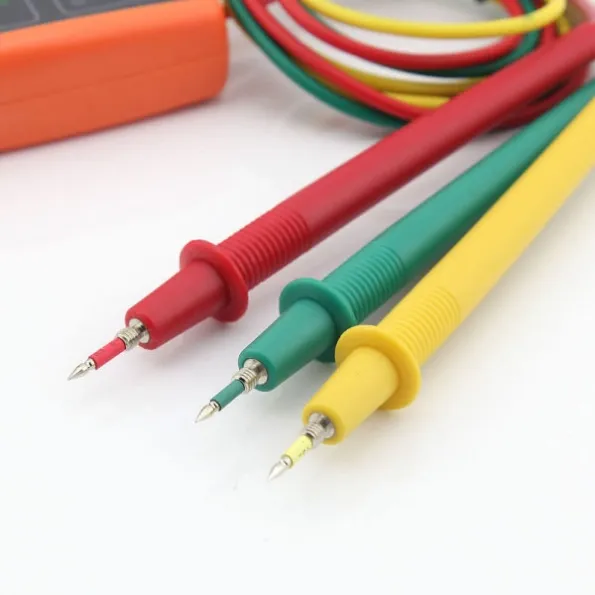

Main Features: ● One unit with two functions ● Frequency range: 20Hz to 400Hz, red, green, yellow light indicates the buzzer ● Operation voltage: 60V - 600V AC, three phase ● Limit support voltage: 2000 V/min ● Operating frequency range: 20Hz - 400Hz ● Limit time for continuous use: 60 minutes maximum at 60V AC, 4 minutes maximum at 600V AC ● Alligator clips. They can easily involve the terminals of the control panel to be tested, guaranteeing
